Tabletop Ducted Fume Hood
video

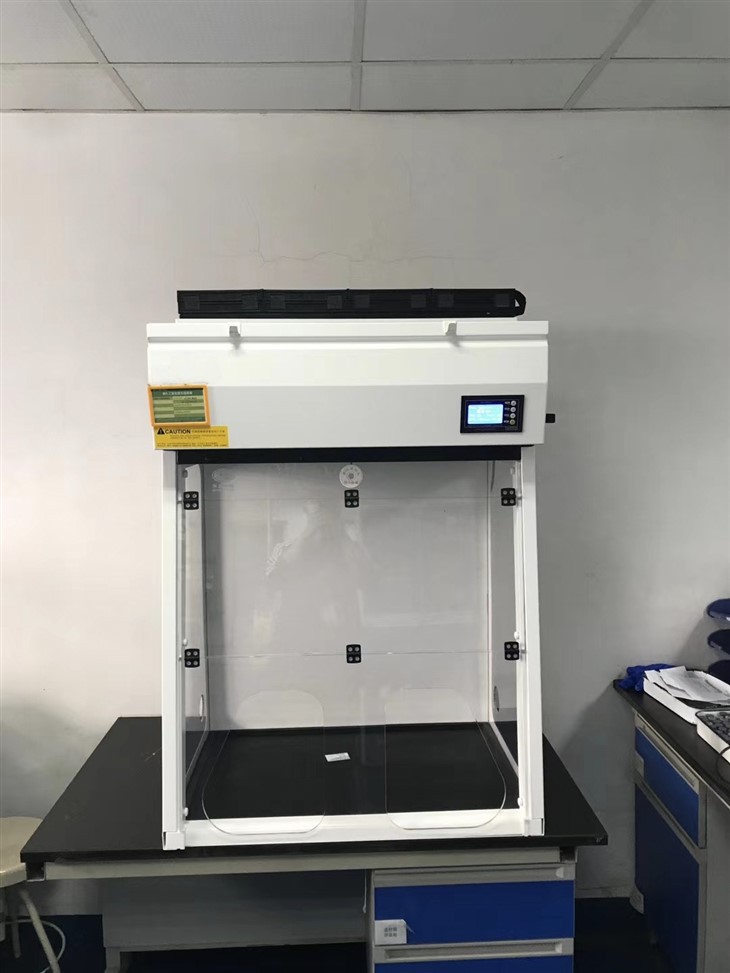

Tabletop Ducted Fume Hood

Tabletop Ducted Fume Hood

The clean air fume cabinet does not require external piping, and has a built-in fan and filter on the top. Turn on the switch, the fan operates to form a negative pressure in the cabinet to ensure that the chemicals will not overflow.
Send Inquiry
Product Details ofTabletop Ducted Fume Hood

Tabletop Ducted Fume Hood

Metal parts: the main material is 1.2mm galvanized steel sheet, coated with acid and alkali resistant epoxy polyester coating;

Load-bearing parts: 2.0mm thick galvanized steel, strong load-bearing capacity, coated with acid and alkali resistant epoxy polyester coating;

Side plate: 6mm thick acrylic plate embedded with 1.2mm galvanized steel plate;

Front panel: 8mm thick acrylic sheet

Filter module: polypropylene (PP material)

Interface: Anti-electromagnetic interference power cord.

Product parameter


Dimensions (mm)

Inside: 986*560*760

Outside: 1000*620*890~1350

Filter module 1
Number of filters 2
Air volume 240m³/h
Surface wind speed 0.4-0.6m/s
Noise ≤50dba
Voltage/Current 220/1.4
Power 30W

LED display


  1. Computerized control panel, showing the temperature in the cabinet.
  2. online monitoring of air quality changes in the laboratory and display of ppm value (optional), real-time monitoring of changes in chemical concentration at the filter outlet and display of ppm value (optional).
  3. Online display of surface wind speed, accurate measurement of high-sensitivity probes.
  4. display of fan speed, etc.; alarm point setting: users can set appropriate alarm points by themselves to improve the laboratory safety level.

Epoxy resin countertop



Featuring a one-piece core with excellent chemical stability, the panel is made from special high-pressure kraft paper and phenolic resin cured at high temperatures, giving it strong impact resistance. The flame-retardant material offers high temperature resistance, while the specially designed surface structure makes the product scratch-resistant and wear-resistant.

Filter



Primarily designed for organic gases; YJ filter optional.

TY-Type Filter: Offers strong adsorption capacity for both acid gases and organic gases.

HEPA Filter (H14): Designed for particle filtration, with a filtration efficiency of 99.995% for particles larger than 0.3μm.
