Blood Refrigerator for Hospital and CDC 4℃ 108L
The medical industry is mainly used for professional equipment for refrigerating blood (whole blood), as well as for refrigerating pharmaceutical reagents, biological products, etc.Applicable to: Add to Inquiry -
CDC Compliant Vaccine Refrigerators 2~8℃ 316L
The temperature range in the box is 2~8℃, and the humidity display range in the box is 35%~75%.Temperature and humidity display, standard USB interface, can export the temperature and humidity data Add to Inquiry -
Vaccine Refrigerator and Freezer BOKA 2~8℃ 1006L
Vertical small-volume medicine refrigerator, with two choices of glass door and foam door.,Standard configuration: test hole, identification strip, door body automatically rebounds.. Add to Inquiry -
Vaccine Storage Freezer Equipments Freezer 2~8℃ 656L
Vertical small-volume medicine refrigerator, with two choices of glass door and foam door.,. Add to Inquiry -
Vaccine Refrigerator Biomedcial Refrigerator 2~8℃ 415L
Vertical small-volume medicine refrigerator, with two choices of glass door and foam door.,. The safety door lock design prevents abnormal opening and closing of the door; the large-screen digital Add to Inquiry -
Minus 2~8℃ Vaccine Fridge for Hospital
Vertical small-volume medicine refrigerator, with two choices of glass door and foam door.Standard configuration: test hole, identification strip. Add to Inquiry -
Vaccine Fridge for Medicine Storage 2~8℃ 315L
Vertical small-volume medicine refrigerator, with two choices of glass door and foam door Add to Inquiry -
Vaccine Refrigerator for Lab Or Medical 2~8℃ 236L
Vertical small-volume medicine refrigerator, with two choices of glass door and foam door Add to Inquiry -
Vertical Small Drug Refrigerator 2~8℃ 100L
Vertical small-volume medicine refrigerator, with two choices of glass door and foam door Add to Inquiry -
Small Refrigerator for Medicine 2~8℃ 60L
It is suitable for pharmacies, pharmaceutical factories, hospitals, health centers and disease prevention and control centers, electronics industry, chemical industry, scientific research field, Add to Inquiry -
Horizontal Supermarket Ultra-low Temperature Freezer -60℃...
The freezer body is made of high-quality sprayed steel plate, and the inner wall material is made of high-quality 304 stainless steel, which is durable, safe and reliable Add to Inquiry -
Small Chest Medical Refrigerator Freezer In China 25℃ 105L
The freezer body is made of high-quality sprayed steel plate, and the inner wall material is made of high-quality 304 stainless steel, which is durable, safe and reliable Add to Inquiry
Specification of Medical Refrigerator
|
Style |
Vertical |
|
Volume |
108L |
|
Net weight |
74kg |
|
Rated power |
191W |
|
Power consumption |
1.67kW.h / 24h |
|
Noise level |
49.6dB |
|
Climate type |
SN/N |
|
Cooling method |
Air cooling |
|
Temperature range |
4℃±1℃ |
|
Storage quantity |
66 bags of blood, each with a volume of 450ml |
|
Working conditions |
Ambient temperature 10～32℃, power supply 220V/50Hz. |
|
External dimensions (width * depth * height) |
522 * 635 * 1030 (mm) |
|
Internal dimensions (width * depth * height) |
432 * 462 * 478 (mm) |
|
External material |
Sprayed steel plate |
|
Internal material |
304 stainless steel plate |
|
Number of grid frames |
2 layers; built-in adjustable height, plastic-dipped grid frames. |
|
Number of screen frames |
6; built-in removable, plastic-dipped screen frames, convenient for users to access blood bags. |
|
Insulation layer |
CFC-free high-density polyurethane foam. |
|
Number of inner doors |
2; the transparent inner door design reduces air-conditioning loss. |
|
Door structure |
Door structure: double-layer hollow tempered glass door, filled with inert gas in the middle; electric heating film to prevent surface condensation, better display effect. |
|
Grid frame |
5 layers, adjustable height, dipped plastic material, with identification strips. |
|
Basket |
The bottom of the box is equipped with a plastic dipping basket, which is convenient for storing medicines separately. |
|
Door lock |
The door body is double-locked up and down, and an external padlock can be added. |
|
Condenser |
Forced air cooling for heat dissipation |
|
Casters |
4 casters, 2 of which are universal wheels with lock stop design, users can move the box as needed. |
|
Test hole |
1 for easy installation of temperature and humidity recorder. |
|
Fan type |
Shaded pole fan is used |
|
Evaporator |
Copper tube fin type evaporator |
|
Refrigerant |
Green non-fluorine refrigerant is used |
|
Compressor |
Imported brand Embraco compressor, the quantity is 1. |
|
Optional accessories |
Temperature and humidity recorder, waterproof socket, etc. |
Types of Medical Refrigerator
The medical refrigerators produced by our company mainly include the following types
Medical Refrigerator-25℃
The backup battery ensures that it will alarm and record the internal temperature for 48 hours after the power is off. The battery life reminder function can remind the user before the battery needs to be replaced.
Medical Refrigerator-40℃
The main body of the refrigerator is made of high-quality sprayed steel plate, and the inner wall material is made of 304 stainless steel, which is durable, safe and reliable.
Medical Refrigerator -60℃
Adopt internationally renowned brand compressors, condensing fans, built-in coil type evaporator, wire-tube condenser, unique application of new refrigeration technology, optimized refrigeration system, make products more stable and cool Speed up.

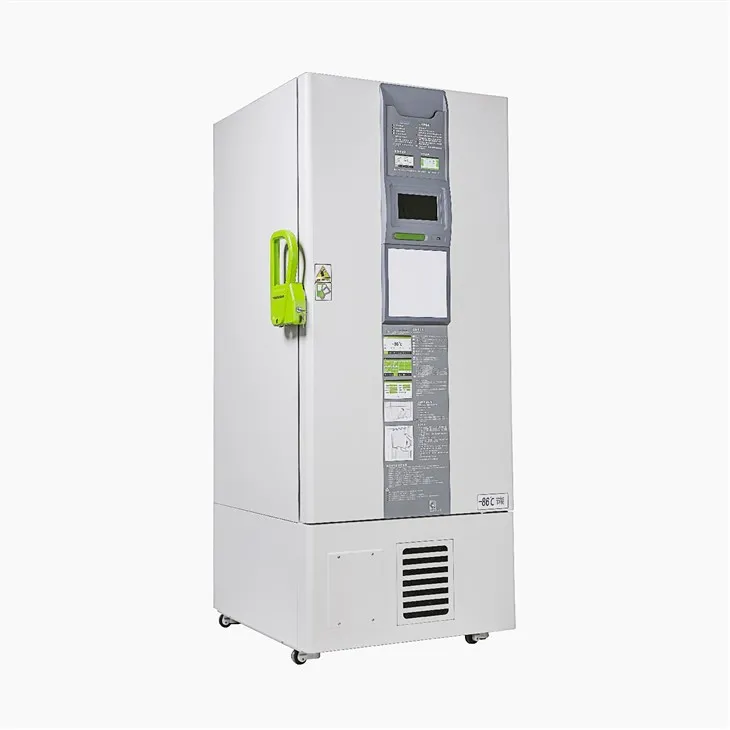

Medical Refrigerator-86℃
Special noise reduction design, alternating shock absorption materials of special materials between each component that may produce noise, and high-density fireproof sound-absorbing cotton is arranged around the components.
Medical Refrigerator 2-8℃
The temperature range in the box is 2~8℃, and the humidity display range in the box is 35%~75%. Temperature and humidity display, standard USB interface, can export the temperature and humidity data in the box.
Applications of Medical Refrigerator
01/
Clinics & Hospitals
Safely store vaccines, medications, and blood samples.
Maintain regulatory compliance with consistent temperature control.
Essential for immunization programs and patient care.
02/
Pharmacies
Preserve temperature-sensitive drugs and vaccines.
Ensure medication efficacy with stable storage environments.
Prevent costly spoilage and adhere to pharmaceutical guidelines.
03/
Laboratories
Store biological specimens, reagents, and test samples.
Support research integrity with reliable temperature stability.
Essential for diagnostics, research, and scientific breakthroughs.
04/
Blood Banks
Maintain proper storage conditions for plasma and whole blood.
Integrated alarm systems ensure timely action during power fluctuations.
Support life-saving transfusion services.
05/
Veterinary Clinics
Provide safe storage for animal vaccines and medications.
Ideal for rural or mobile veterinary practices requiring reliable refrigeration.
06/
Research Institutions
Protect valuable biological materials and experiments.
Ultra-precise cooling systems ensure reliability for long-term projects.
Main Differences Between a Refrigerator with a Generic Destination of Use and a Medical Refrigerator
Temperature uniformity guaranteed
Medical refrigerators are featured by their capability to maintain a uniform and stable internal temperature, thanks to an advanced refrigeration system and precise electronic control. This uniformity, essential to meet the stringent standards required in the healthcare sector, prevents the formation of hot or cold zones that could compromise the integrity of stored products. Ordinary refrigerators designed for general household or commercial use, on the other hand, can have greater temperature fluctuations and less uniform cold distribution because they rely on simpler, less precise cooling systems.
Faster temperature recovery time
Temperature recovery time after opening the door is another critical factor. Thanks to superior thermal insulation and an efficient refrigeration system, medical refrigerators recover the set temperature quickly, minimising the time products are exposed to temperature variations and ensuring maximum protection. On the other hand, in ordinary refrigerators the recovery time can be significantly longer, increasing the risk of damage to sensitive products.
High quality materials
Medical refrigerators are characterised by the use of high quality materials designed to ensure resistance, ease of cleaning and long life even in intensive use medical environments. Evermed refrigerators are specifically made of stainless steel and sheet steel metal coated with antibacterial protection, which offers unparallel resistance against corrosion and facilitates disinfection, a crucial element in the medical field. Generic refrigerators instead often use plastic materials for the interior, which can be less resistant to wear and tear and more difficult to sanitise thoroughly.
High density thermal insulation
The industrial grade thermal insulation of medical refrigerators minimises heat loss and ensures optimal thermal stability, even in the event of external temperature fluctuations or power failures. Ordinary or commercial refrigerators, on the other hand, often have less effective insulation, making them more sensitive to thermal fluctuations in their environment.
Precautions for Placing Medical Refrigerators
Store in a room below maximum ambient temperature.
A high ambient temperature may have a negative impact on the temperature inside the medical fridge, affecting vaccine storage efficiency. Ideally, the ambient temperature in a laboratory, pharmacy, or healthcare facility needs to be between 15ºC and 25ºC for safe storage.
Install on a stable, even surface.
A medical fridge that is unbalanced can result in poor distribution of cool air inside the compartment, leading to uneven temperature distribution. Some areas may be too hot and some too cold causing contents to spoil.
Keep out of direct sunlight.
If a medical fridge is continuously exposed to direct sunlight, the fridge casing could overheat, raising the internal temperature of the fridge, potentially resulting in a cold chain breach. Medications and biological samples need specific temperature uniformity for safekeeping.
Keep away from direct heat sources
In a similar way to sunlight, direct heat sources can cause a medical fridge to become overheated, and impact the quality and usefulness of medications and biological samples inside. Keep the medical fridge away from heat pumps, radiators and heaters that can supply direct heat to the fridge.
Check floor weight bearing capability
The floor the medical fridge is being installed on must be able to bear the weight of the appliance during operation. A 610 litre medical fridge can weigh up to 200kg. To accurately assess the weight capacity of your floor, consult an engineer or building professional.
Keep in a well ventilated area
Adequate ventilation is essential when choosing an area for a medical fridge. Be sure to take into account the size of the unit and the amount of space required around the sides, back and top so the fridge can have the right amount of air circulation.
Allow adequate room for the fridge door to open
Make sure the area you plan to install the medical fridge has ample room to open the fridge door. Any restrictions on movement will impede the fast removal of medications, vaccines and biological samples.
Ensure the power point is secure
When looking for a suitable location for installation, make sure to check the power points available. Pay close attention to ensuring the power points are secure so the fridge cannot be accidentally turned off or unplugged.
Ensure the fridge has an independent power outlet
It is essential that the medical fridge has an independent power outlet and is not plugged into a multiple outlet power board. Medical fridges often need a significant amount of power to operate and power boards are not designed to handle the high current draw.
Leave the medical fridge to stand for 24 hours
When the medical fridge is delivered, or you move an original fridge to a new location, let it stand for 24 hours before switching it on. The reason for this is moving a medical fridge can cause the compressor oil to leak into the refrigeration system.
Packaging and Shipping
|
Packaging |
Wooden box |
|
Shipping |
We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc. |
Our Services
Design Services
Our in-house design team will plan your lab properlyto maximize your capabilities & future growth. Willprovide Lab layout/plan, 3D drawings and renderingdrawings.
Project Management
Each order is assigned a dedicated engineer andsales who are the customer's primary contact for theentire project.
Shipping Service
We have rich experience in loading, fragile goods arepacked in wooden boxes to ensure that they will notbe damaged during transportation.
Installation Service
Modular product, easy to install, real-time video online installation services are providedand a professional installation team can provideoverseas installation services if necessary.
Our Factory
Guangzhou Boka Lab System Tech.Co.,Ltd is located in Guangzhou China. with well-equipped facilities and strong technical force for lab furniture. Per year output can reach 17500 sets .BOKA Keeping pursuing high quality and satisfaction service to customer all the time.
Certifications
As one of the most professional medical refrigerator manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy high-grade medical refrigerator from our factory. Contact us for price list
Medical Refrigerator,
