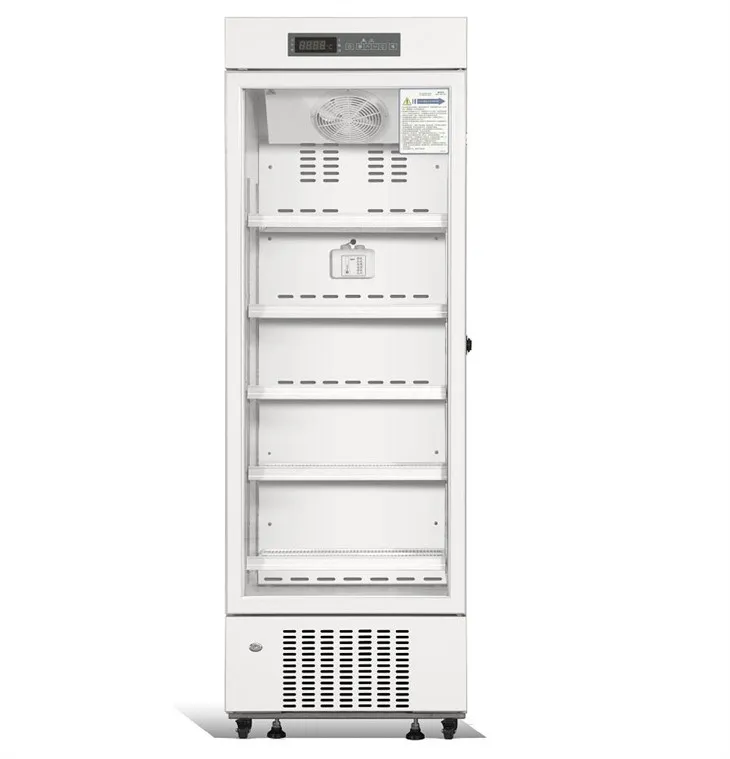

Vaccine Refrigerator Biomedcial Refrigerator 2~8℃ 415L
The safety door lock design prevents abnormal opening and closing of the door; the large-screen digital display is easy to observe; the adjustable shelf design; the internal lighting lamp makes the inside of the cabinet clear.,
Send Inquiry
Product Details ofVaccine Refrigerator Biomedcial Refrigerator 2~8℃ 415L
| Technical parameter |
Air duct design: circulating air-cooled back-blowing technology to avoid poor ventilation or uneven temperature due to obstruction of stored items.
Refrigeration system: high-efficiency refrigeration system design, through the forced air cooling cycle system to achieve a more uniform temperature distribution, while ensuring smaller temperature fluctuations, so as to achieve a stable sample storage temperature; finned evaporator with a unique cycle The air-cooled back-blowing technology design ensures that there is no frost in the box.
Temperature control: Microcomputer control system, LED digital display temperature data, can ensure accurate and stable operation; precise electronic temperature control and display, with an accuracy of 0.1℃.
| Model | BK-5V415L |
| Style | Vertical |
| Volume | 415L |
| Net weight | 120kg |
| Rated power | 280W |
| Power consumption | 1.78kW.h / 24h |
| Noise level | 50dB |
| Climate type | SN/N |
| Cooling method | Air cooling |
| Temperature range | 2℃～8℃ |
| Working conditions | Ambient temperature 10～32℃, power supply 220V/50Hz. |
| External dimensions (width * depth * height) | 780*580*1920 (mm) |
| Internal dimensions (width * depth * height) | 685*429*1380 (mm) |
| External material | sprayed steel plate |
| Internal material | sprayed steel plate |
| Number of doors | 1 piece |
| Insulation layer | CFC-free high-density polyurethane foam. |
| Door structure | Double-layer hollow tempered glass door, filled with inert gas in the middle; electrified heating film to prevent surface condensation, better display effect. |
| Bottom feet | 4 leveling feet |
| Grid | 6 layers, adjustable height, with identification strips; high-density steel wire dipping shelves (spacing less than 1 cm to prevent items from falling), with storage baskets at the bottom (6 shelves in the box + 1 Baskets). |
| Basket | The bottom of the box is equipped with a plastic dipping basket, which is convenient for storing medicines separately. |
| Door lock | The door body is double-locked up and down, and an external padlock can be added. |
| Condenser | steel wire condenser |
| Casters | 4 casters, 2 of which are universal wheels with lock stop design, users can move the box as needed. |
| Test hole | 1, convenient to install the temperature and humidity recorder. |
| Fan type | Shaded pole fan is used |
| Evaporator | Fin type evaporator |
| Refrigerant | Adopt green environmental protection refrigerant |
| Compressor | The number of internationally renowned brand compressors is 1. |
| Optional accessories | Temperature and humidity recorder, waterproof socket, etc. |
| Product description |
Display mode: LED digital display, which can display the temperature in the box and various alarm information.
Alarm system: high and low temperature alarm, temperature controller failure alarm, power failure alarm, abnormal door opening and closing alarm.
Alarm mode: alarm mode with sound buzzer and light flashing.
Electrical safety:
(1) The backup battery ensures an alarm 48 hours after power failure;
(2) Fail-safe operation mode of thermostat probe;
(3) Keyboard lock and password protection function to prevent random adjustment of operating parameters;
(4) Power failure protection: When power supply is restored, the simultaneous activation of all equipment will cause a greater impact on the grid, which may cause the circuit breaker to trip; the equipment delay start function specially designed for this situation can make the equipment recover During this period, it will be delayed for several minutes to restart the equipment smoothly;
(5) Wide voltage band is applicable, and it can be used normally in the range of 187V～242V.
Features:
(1) Two concealed lock designs on the door body, and an external padlock can be added;
(2) The door body has an automatic rebound function;
(3) Built-in LED cold light source lighting, so that the inside of the cabinet can be seen clearly;
(4) Adjustable plastic dipping grid design;
(5) 1 test hole is standard, which is convenient for users to choose temperature and humidity recorder;
(6) Design of self-evaporation of condensate water;
(7) Standard USB interface to export data;
(8) Standard RS232 interface and remote alarm terminal.
36. Optional accessories: temperature and humidity recorder, waterproof socket, etc.
| Product Certifications |
Qualification certifications:
(1) Medical device production license;
(2) Medical device registration certificate;
(3) ISO9001 quality management system certification;
(4) ISO13485 medical device quality management system certification; (5) ISO14001 environmental management system certification;
(6) OHSAS18001 occupational health and safety management system certification.
| Application scope |
Application areas: scientific research institutes, electronics industry, chemical industry, hospitals, health and epidemic prevention systems, funny laboratories, military enterprises, etc.
