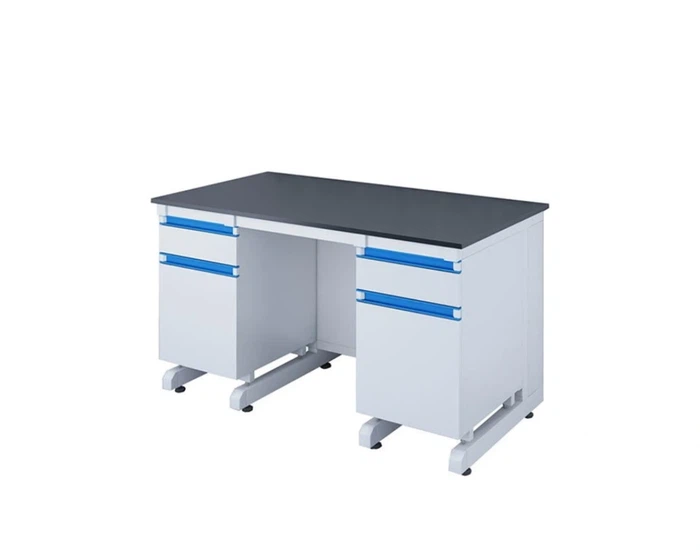

Steel-wood Lab Bench
Steel-wood Lab Bench
Steel-wood lab benches combine strength and style, offering reliable structural support and chemical resistance. The durable steel frame ensures stability and longevity, while modular wooden components offer flexible configurations and a clean, functional design.
Boka delivers full-service lab solutions, including furniture layout planning, utility integration, and accessory support. We customize every lab to fit your workflow, combining safety, efficiency, and quality into one complete system.
Steel-Wood Lab Bench Specifications
Frame
Steel support uses 40–60 cold-rolled rectangular steel pipe; supporting column uses the same size steel pipe with both sides welded with cold-rolled U-steel. The surface is plated with colored zinc for rust prevention, and epoxy resin is sprayed after acid washing, phosphatization, and electrostatic powder coating using carbon dioxide arc welding to achieve acid and alkali resistance.
The adhesion of the protective layer meets drop impact test requirements, with a static load bearing > 250kg. Supporting column can be directly mounted beside the cabinet without damaging the wall.
Cabinet Body
Side plate, roof plate, baffle, and bottom plate of base box: made of 15mm thick environmentally friendly boards;
Top plate of base box and drawer: made of 15mm thick MDF;
Side plate of drawer and rear maintenance plate: made of 15mm thick environmentally friendly MDF;
Bottom plate of drawer: made of 10mm thick environmentally friendly MDF;
Edge plate: made of 1.0mm PVC;
Edge sealing material for top plate of drawer and door: 2.0mm PVC.
Accessories
Sink: Laboratory-dedicated high-quality PP sink with excellent acid and alkali resistance.
Water Nozzle: Laboratory-dedicated nozzle with copper ceramic valve core; the entire surface is coated with epoxy resin electrostatic powder.
Three-Mouth Test Faucet: Laboratory-dedicated three-mouth test faucet made of copper; the surface is epoxy resin coated.
Socket: Laboratory safety product with dust-proof, splash-proof, waterproof, and acid/alkali-resistant performance. Made of PC material for flame retardancy.
Countertop: Steel-wooden central experimental platform can use solid boards and top boards (epoxy resin board, phenolic resin board, granite, stainless steel, ceramic, etc.) in colors of black and off-white.
Structural Components
Reagent Shelf and Plywood: Aluminum reagent shelf with aluminum alloy support; plywood is 10mm thick frosted glass with a double-layer structure. It includes holes of different heights and is height-adjustable based on actual needs.
Slide Rail: Triple heavy-duty ball-bearing slide rails with strong load capacity and smooth, noise-free operation.
Hinge: 175° high-quality chrome-plated steel hinges made according to British standards.
Handle: Linear hidden handle made of aluminum alloy or PVC.
Adjustable Combination Anchor: Features anti-skid, shock absorption, acid and alkali resistance, corrosion resistance, and high strength.
Bench Layout Solutions to Fit Your Needs
Steel-Wood Island Central Bench
A freestanding double-sided bench ideal for group experiments and central lab workflows, offering access from all sides.
Steel-Wood Side Bench
A wall-mounted single-sided bench designed for routine tasks and instrument placement with efficient use of space.
Steel-Wood Corner Bench
A space-optimizing solution that fits seamlessly into corners, connecting side benches to form a continuous workstation.
Best Lab Furniture Solution
One-Stop Lab Furniture Solutions
Boka offers comprehensive lab furniture packages, including layout planning, installation, and accessory integration for a seamless experience.
Customizable Solutions to Fit Various Laboratory Needs
We tailor each lab setup to match specific workflows and space requirements, ensuring optimal efficiency and functionality.
Superior Product Quality and Durability
Our steel-wood lab benches combine robust steel frames with modular wooden components, providing long-lasting stability, chemical resistance, and sleek design.
Faqs about Steel-wood Lab Bench
Can the shelving and height be adjusted?
The reagent shelves use 10mm tempered glass with aluminum alloy supports, allowing height adjustment via pre-drilled holes. The drawer rails are heavy-duty and noiseless for smooth operation.
How durable is the lab bench structure?
The steel-wood hybrid design ensures high load capacity (250kg), impact resistance, and wall-mountable support columns without wall damage. Edge seals use 2.0mm PVC for longevity.
Where is Steel-Wood Lab Bench typically used?
Common in school labs, research facilities, and budget-conscious settings due to its practicality and economical price.
Do you ship to my country?
We offer international shipping to most countries. Please contact us for specific shipping details to your location.
