Biobase 50L-100L Laboratory Refrigerator for Drug Storage

Biobase 50L-100L Laboratory Refrigerator for Drug Storage

Vertical small-volume medicine refrigerator, with two choices of glass door and foam door
Send Inquiry
Product Details of Biobase 50L-100L Laboratory Refrigerator for Drug Storage

Product Introduction

We focus on the development strategy of high technology and high value-added chemical fume hood, Pharmacy Refrigerator, Pharmaceutical Grade Freezer , and are committed to developing into a first-class company. Our commitment to social responsibility extends beyond our business operations and into our communities. Our values are, with full of professional quality of service, and the interests of users combined together to move forward. Our team is skilled in navigating the challenges of cross-cultural communication, making it easy for us to work with clients and partners from all over the world.

Technical parameter

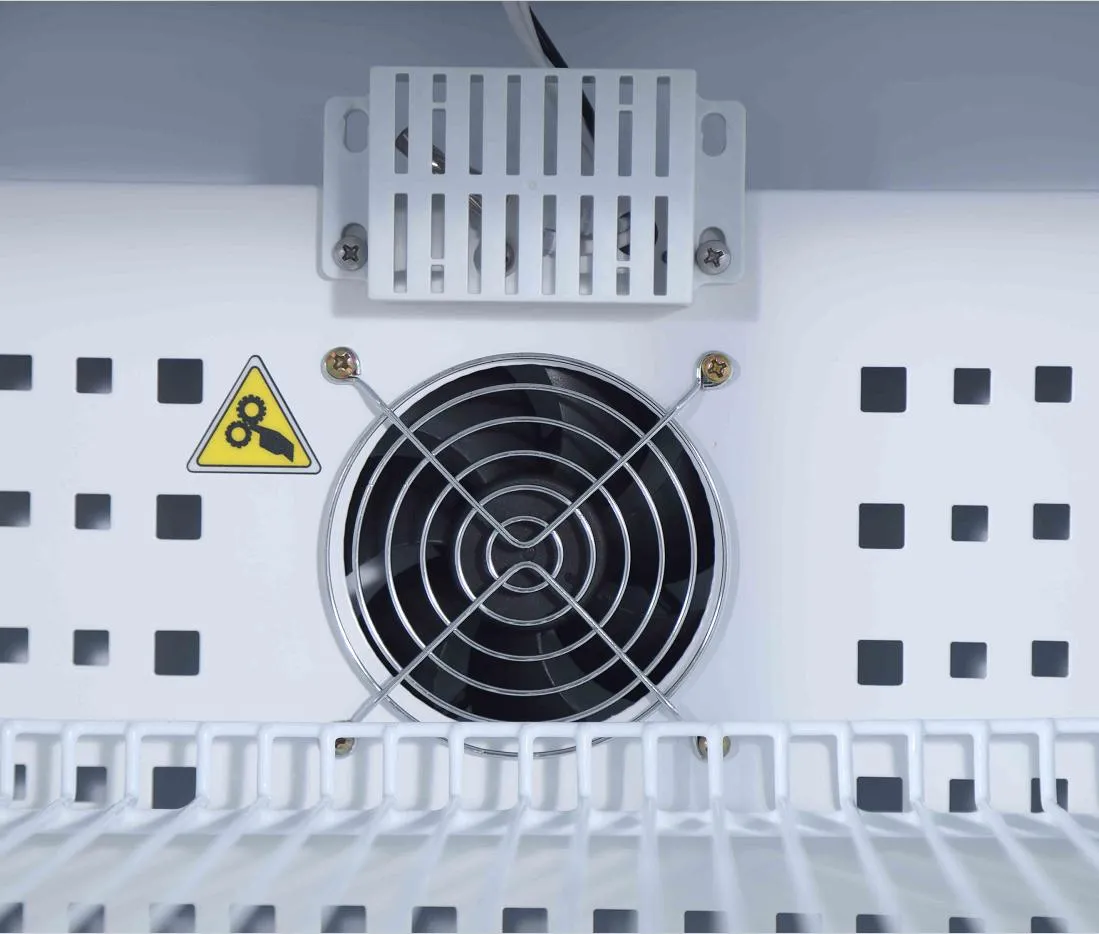

Air duct design: circulating air-cooled back-blowing technology to avoid poor ventilation or uneven temperature due to obstruction of stored items.

Refrigeration system: High-efficiency refrigeration system design achieves a more uniform temperature layout, while ensuring smaller temperature fluctuations, thereby achieving a stable sample storage temperature.

Temperature control: Microcomputer control system, LED digital display temperature data, can ensure accurate and stable operation; precise electronic temperature control and display, with an accuracy of 0.1℃.

drug refrigerator

ModelBK-5V100L
StyleVertical
Volume100L
Net weight35kg
Rated power80W
Power consumption0.84 kW.h/24h
Noise level50dB
Climate typeSN/N
Cooling methodAir cooling
Temperature range 2℃~8℃
Working conditionsAmbient temperature 10~32℃, power supply 220V/50Hz.
External dimensions (width * depth * height)505 * 510 * 875 (mm)
Internal dimensions (width * depth * height)

385 * 356 * 737 (mm)

External materialsprayed steel plate
Internal materialHIPS
Number of doors1 piece
Door structuredouble-layer thermal insulation tempered glass door, with electric heating function, which can effectively remove condensation.
Bottom feet4 leveling feet
CondenserWire-tube condenser
EvaporatorCoil evaporator
RefrigerantAdopt green environmental protection refrigerant.
CompressorThe number of internationally renowned brand compressors is 1.
Optional accessoriesTemperature and humidity recorderTemperature recorder
Product  description


drug refrigerator

drug refrigerator

Display mode: LED digital display, which can display the temperature and alarm information in the box.

Alarm system: high and low temperature alarm, door open alarm, temperature controller failure alarm, power failure alarm.

Alarm mode: dual alarm modes with sound buzzer and light flashing.

drug refrigerator


Features:

(1) A concealed lock design is standard to prevent abnormal opening and closing of the door;

(2) LED cold light source lighting is installed inside, so that the inside of the cabinet can be seen clearly;

drug refrigerator

Electrical safety:

(1) Keyboard lock and password protection function to prevent random adjustment of operating parameters;

(2) Power failure protection: When power supply is restored, the simultaneous activation of all equipment will cause a greater impact on the grid, which may cause the circuit breaker to trip; the equipment delay start function specially designed for this situation can make the equipment during the recovery period Delay for several minutes to start, so that the equipment can re-run smoothly;

(3) Wide voltage band is applicable, and it can be used normally in the range of 187V~242V.

drug refrigerator

drug refrigerator

Product Certifications

Qualification certifications:


(1) Medical device production license;

(2) Medical device registration certificate;

(3) ISO9001 quality management system certification;

(4) ISO13485 medical device quality management system certification; (5) ISO14001 environmental management system certification;

(6) OHSAS18001 occupational health and safety management system certification.

Application scope

Application areas: scientific research institutes, electronics industry, chemical industry, hospitals, health and epidemic prevention systems, funny laboratories, military enterprises, etc.
