Bio-purification safety cabinets are a necessity in today's microbiological laboratories, especially those occasions where operators need to take protective measures, such as medical treatment, pharmaceuticals, scientific research, etc., to provide bacteria-free and dust-free and work-group safe environment for bacterial culture.

Class II Biosafety Cabinet with CE, ISO, and EU Certification

Product Advantages

Compact Design - Small dimensions save space.
Advanced Airflow Control - Features a speed-adjustable centrifugal fan with H14 HEPA filter.
Motorized Front Window - Allows convenient one-handed operation.
Audio-Visual Alarm System - Alerts for abnormal airflow velocity, filter replacement needs, and unsafe window height.
Time Reserve Function - Saves 30 minutes of waiting time during both cabinet activation and post-experiment sterilization.
Remote Control - Full operation possible from up to 6 meters away for emergency protection.
Large LCD Display - Shows inflow/downflow velocity, temperature/humidity, filter pressure, UV/filter timers, and filter life.
Power-Failure Memory - Automatically preserves settings during outages.

Product Features

1. Air curtain isolation design prevents internal and external cross-contamination.

2. Move the glass up and down, which is convenient and flexible.

3. There is a special filter at the exhaust to control emission pollution.

4. Equipped with special waterproof socket and sewage interface to provide great convenience for the operator.

5. Airflow System:70% air recirculation , 30% air exhauste.

6. Three protections: operator, sample, and environment.

A Class II A2 Biological Safety Cabinet with a large LCD display, 304 stainless steel work zone, remote control, waterproof sockets, and a UV lamp for efficient decontamination.

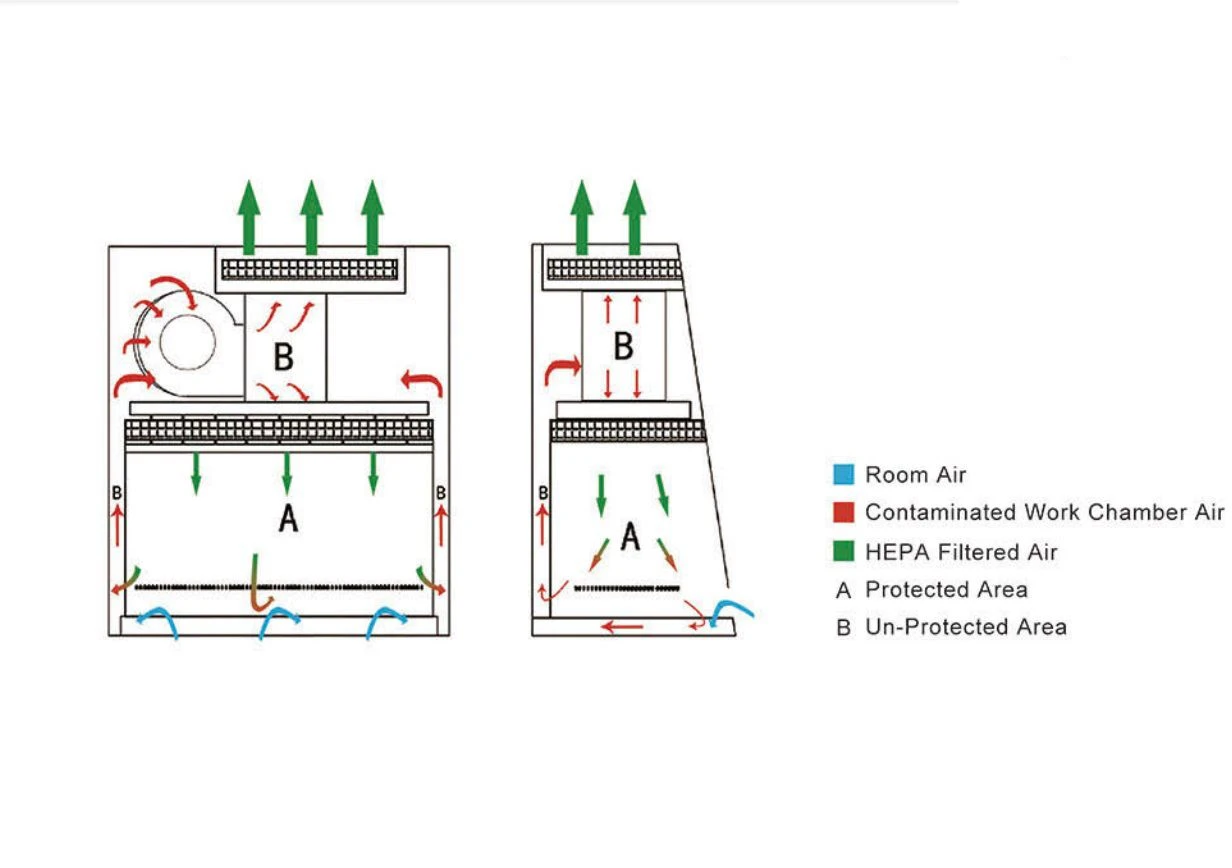

Working Principle

Protect the Operator: The inflow of room air (blue) at the front creates an air curtain, preventing contaminants from escaping the cabinet and reaching the operator.

Protect the Sample: The downward flow of HEPA-filtered air (green) in the work area (A) ensures a sterile environment for the sample, preventing contamination.

Protect the Environment: Contaminated air (red) is filtered through HEPA filters before being exhausted (green), ensuring that no harmful particles are released into the environment.

Technical Specifications

Model	11231BBC86
External Dimensions (W×D×H)	700 × 650 × 1230 mm
Internal Dimensions (W×D×H)	600 × 500 × 540 mm
Safe Opening Height	200 mm (8")
Maximum Opening	370 mm (15")
Inflow Velocity	0.53 ± 0.025 m/s
Downflow Velocity	0.33 ± 0.025 m/s
HEPA Filter	Two filters, 99.999% efficiency at 0.3 µm; includes life indicator.
Front Window	Motorized, toughened glass, UV-resistant.
Noise Level	EN12469 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp	15W × 1 (253.7 nm wavelength for optimal decontamination).
LED Lamp	8W × 2; UV timer and life indicator included.
Illuminance	≥1000 Lux
Power Sockets	Two sockets (total load: 500W).
Display	LCD screen for real-time monitoring.
Control System	Microprocessor-based.
Airflow System	70% recirculation, 30% exhaust.
Alarms	Filter replacement, window overheight, abnormal airflow.
Material	Cold-rolled steel with antibacterial powder coating.
Work Surface Height	750 mm (optional base stand).
Power Supply	AC 220V ±10%, 50/60Hz; or 110V ±10%, 60Hz.
Standard Accessories	LED lamp, UV lamp ×2, remote control, waterproof sockets ×2.
Optional Accessories	Base stand, universal casters (brake + leveling feet), electric height-adjustable stand.
Weight (Without Base Stand)	Wooden crate: 164 kg; Carton: 121 kg.
Weight (With Base Stand)	Wooden crate: 196 kg.
Package Size (Without Base Stand)	Wooden crate: 860 × 800 × 1450 mm; Carton: 820 × 760 × 1430 mm.
Package Size (With Base Stand)	Wooden crate: 860 × 800 × 1450 mm

Product Certification

Class 2 Biosafety Cabinet Certification
