GuangZhou Boka Lab System Tech.Co.,Ltd, a professional microbiology laboratory design company, provides comprehensive layout solutions consisting of six core functional areas: preparation room, washing room, sterilization room, sterile room, constant temperature culture room, and general laboratory. Whether you're planning a new clean room laboratory design or upgrading an existing facility, understanding these functional zones is essential for achieving reliable, contamination-free results. The common feature of these rooms is that the floor and wall surfaces are smooth and hard, with instruments and equipment arranged simply for ease of cleaning and routine lab sterilization procedures.
Microbiology Laboratory Design: Core Functional Areas
(1) Preparation Room
The preparation room is used for culture medium preparation, sample processing, and related tasks. It is typically equipped with reagent cabinets, storage cabinets, countertops, test benches, electric stoves, refrigerators, water and sewage connections, and power supplies.
(2) Washing Room
The washing room is used for cleaning glassware and laboratory utensils. Because used utensils are often contaminated with microorganisms - and sometimes pathogenic ones - a dedicated washing room should be set up wherever facility conditions allow. It should include heaters, steamers, basins and buckets for washing utensils, as well as bottle brushes, decontamination powder, soap, and washing powder. In our project experience, separating the washing area from clean workspaces significantly reduces cross-contamination risk during routine turnover.
(3) Sterilization Room
The sterilization room is primarily used for sterilizing culture media and various instruments. It should be equipped with sterilization equipment such as a high-pressure steam autoclave and a drying oven - both standard requirements for reliable lab sterilization procedures.
(4) Sterile Room (Inoculation Room)
The sterile room, also called the inoculation room, is a dedicated space for aseptic operations such as strain inoculation and purification. In microbial work, strain inoculation and transplantation is a critical procedure - the goal is to preserve strain purity and prevent contamination. In a general environment, airborne dust and bacteria can easily interfere with inoculation work, which is why a properly isolated sterile room is essential.
Clean Room Laboratory Design Settings
1. Sterile Room Design Principles
The sterile room should be designed according to principles of economy and science. Basic requirements include:
- Room layout: The sterile room should have two connected spaces - an inner sterile room and an outer buffer room. Room volume should not be too large, to facilitate efficient air sterilization. A typical inner room measures approximately 2×2.5=5m², the outer buffer area about 1×2=2m², with ceiling height of 2.5m or less. Both spaces should have a finished ceiling.
- Doors: A sliding door should be used on the interior to minimize air fluctuation, positioned away from the workbench. The outer door should also be a sliding type, located at an inward-facing position.
- Pass-through window: A small pass-through window or hatch should be installed between the inner and outer rooms to allow necessary item transfers during inoculation, reducing how often personnel need to enter and exit - and therefore reducing contamination risk. The pass-through is typically 60cm wide, 40cm high, and 30cm deep, with a sash hinged on both sides.
- Ventilation: Because the sterile room is compact and sealed, indoor temperature can rise significantly after extended use, so a ventilation window is necessary. This should be installed on the ceiling near the entrance of the inner chamber (away from the worktable) as a double-layer structure - an outer louver and an inner sash. The ventilation window should be opened for air circulation after use in the inner chamber and before sterilization. Where budget allows, we recommend installing a constant temperature and humidity control unit for more stable results.
2. Sterile Room Equipment and Fixtures
- The workbench should have a smooth, level surface regardless of material.
- UV lamps (30W total) should be installed in both inner and outer chambers. The inner UV lamp should be mounted directly above the workstation, 2m from the floor; the outer lamp can be centrally mounted.
- The outer room should be stocked with dedicated overalls, shoes, caps, masks, porcelain basins, towels, sterile water, hand-held sprayers, and 5% carbolic acid (phenol) solution.
- The inner chamber should include alcohol lamps, standard inoculation tools, stainless steel knives, scissors, tweezers, 70% alcohol cotton balls, industrial alcohol, glass slides, wax pencils, notebooks, pencils, label paper, adhesive, and waste bins.
3. Sterilization Methods for Sterile Rooms
- Fumigation: The most thorough sterilization method, recommended when contamination is heavy after extended use. Formaldehyde, lactic acid, or sulfur fumigation are commonly used.
- Spraying: Performed before each use. Spraying helps settle airborne particles and microorganisms, prevents dust buildup on surfaces and floors, and has a bactericidal effect. A 5% carbolic acid solution is typically used.
- UV irradiation: Performed before each use, typically for 30–60 minutes, as UV light provides effective bactericidal action.
4. Standard Sterile Room Work Procedure
Sterilize the room - turn on the UV lamp for at least 30 minutes before use, or spray both inner and outer chambers with 5% carbolic acid 30 minutes prior.
Wash hands with soap, bring required equipment into the outer room, change into sterilized overalls, cap, and shoes, put on a mask, then soak hands in 2% phenol soap for 2 minutes.
Move all necessary items into the inner room and check placement. Spray the work surface and operator area with 5% carbolic acid, step back to the outer room, then re-enter the inner room after 5–10 minutes.
Before inoculation, wipe hands with 70% alcohol cotton balls. During aseptic operations, movements should be gentle to minimize air disturbance and dust.
Safety note: If a cotton plug catches fire, smother it by hand or with a damp cloth - never blow on it, as this can worsen burning. If bacterial culture spills or a container breaks, immediately cover the area with a rag soaked in 5% carbolic acid, then wipe the countertop or floor thoroughly and disinfect hands with alcohol before resuming work.
At the end of each session, clean all countertops immediately, remove any items or waste that shouldn't remain in the sterile room, and either spray the room with 5% carbolic acid or run the UV lamp for 30 minutes.
Constant Temperature Culture Room Design
(1) Culture Room Layout
The culture room should have two connected chambers: an inner culture chamber and an outer buffer chamber. The inner chamber is typically about 3.2×4.4=14m², the outer chamber about 3.2×1.8=6m², with a ceiling height around 2.5m.
The upper wall separating inner and outer chambers should include a ventilation opening fitted with an air filter.
A constant temperature and humidity control unit is required to meet the temperature needs of cultured microorganisms.
Both chambers should have centrally mounted UV lamps for sterilization.
(2) Culture Room Equipment
The inner chamber is usually fitted with culture racks and a shaker (rotary or reciprocating types are most common).
The outer room should stock dedicated overalls, shoes, caps, masks, hand-held sprayers, 5% carbolic acid solution, and 70% alcohol cotton balls.
(3) Sterilization and Disinfection
Sterilization and disinfection procedures follow the same protocol as the sterile room. For smaller-scale cultures, a standalone constant temperature incubator can be used instead of building a full culture chamber - a practical, cost-effective option for smaller labs or startups with limited space and budget.
General Laboratory

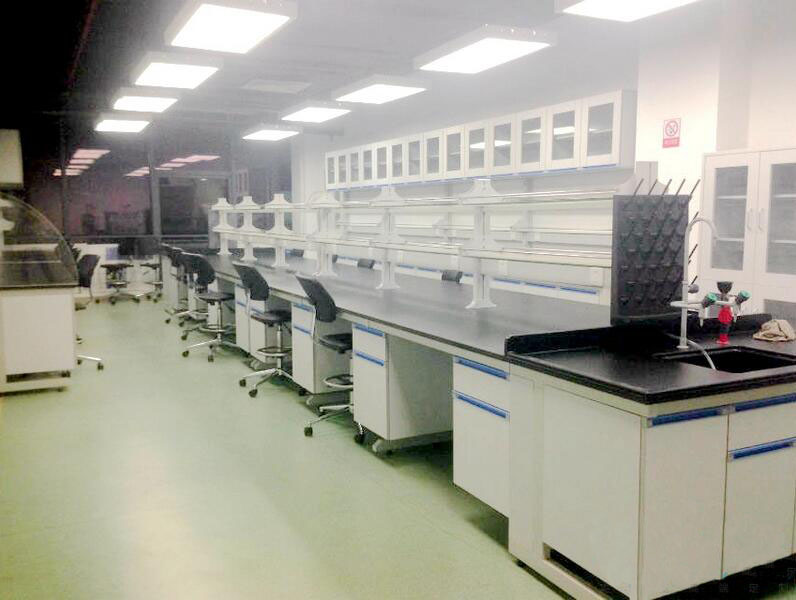

The general laboratory is where observation, counting, and physiological/biochemical measurements of microorganisms take place. Furnishings vary depending on the lab's specific focus, but typically include a test bench, microscope, storage cabinet, and stools. The test bench should have a smooth, level surface, and cabinets should be sized to accommodate daily-use utensils and reagents.
How to Choose the Right Microbiology Lab Design Partner
When selecting a microbiology laboratory design provider, consider the following:
- Industry experience: Look for a supplier with a proven track record designing sterile rooms, clean room laboratories, and culture facilities for pharmaceutical, food safety, biotech, or academic clients.
- Compliance and standards: Confirm the designer follows recognized clean room and biosafety standards relevant to your region and application.
- Customization capability: Every facility has different space, budget, and workflow requirements - a good partner should offer tailored clean room laboratory design solutions rather than one-size-fits-all layouts.
- After-sales support: Ongoing maintenance guidance for sterilization equipment, HVAC/filtration systems, and workbench materials is essential for long-term reliability.
This type of laboratory design is commonly used across pharmaceutical manufacturing, food and beverage testing, biotechnology R&D, academic and research institutions, and clinical diagnostics - any setting where contamination control and aseptic technique are mission-critical.
Frequently Asked Questions
What are the essential rooms in a microbiology laboratory design?
-
A complete microbiology laboratory typically includes six core areas: preparation room, washing room, sterilization room, sterile room (inoculation room), constant temperature culture room, and general laboratory.
How big should a sterile room be in a microbiology lab?
-
A standard sterile room includes an inner chamber of approximately 5m² and an outer buffer chamber of about 2m², with ceiling heights of 2.5m or less to facilitate efficient air sterilization.
What sterilization methods are used in microbiology lab design?
-
Common methods include fumigation (formaldehyde, lactic acid, or sulfur), spraying with 5% carbolic acid solution, and UV irradiation for 30–60 minutes before each use.
Do small labs need a full constant temperature culture room?
-
Not necessarily. Small-scale cultures can often be handled with a standalone constant temperature incubator instead of a dedicated culture chamber, reducing space and cost requirements.
What industries use this type of laboratory design?
-
Pharmaceutical manufacturing, food and beverage testing, biotechnology R&D, academic research institutions, and clinical diagnostics labs all rely on similar microbiology lab design principles.
