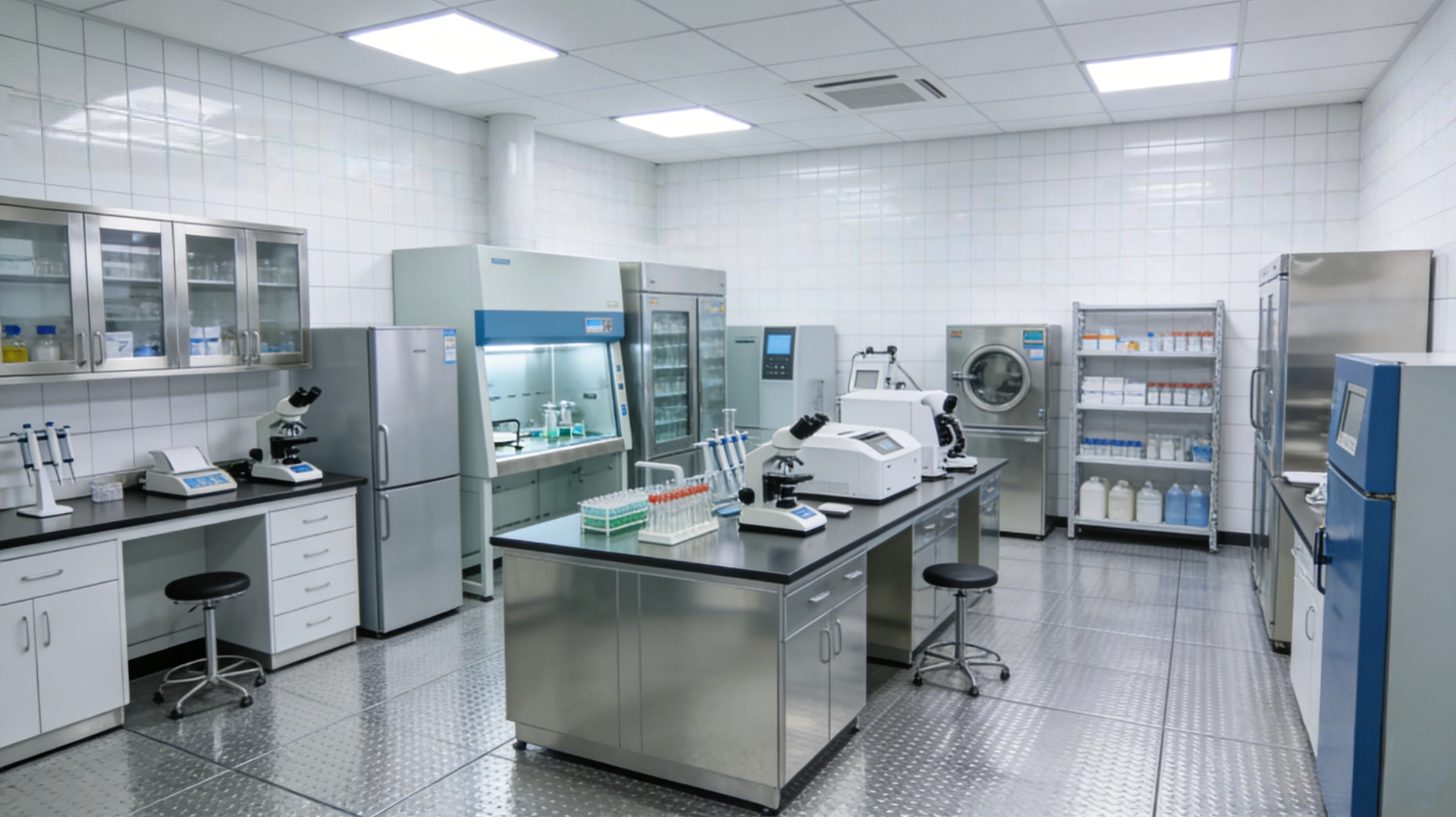

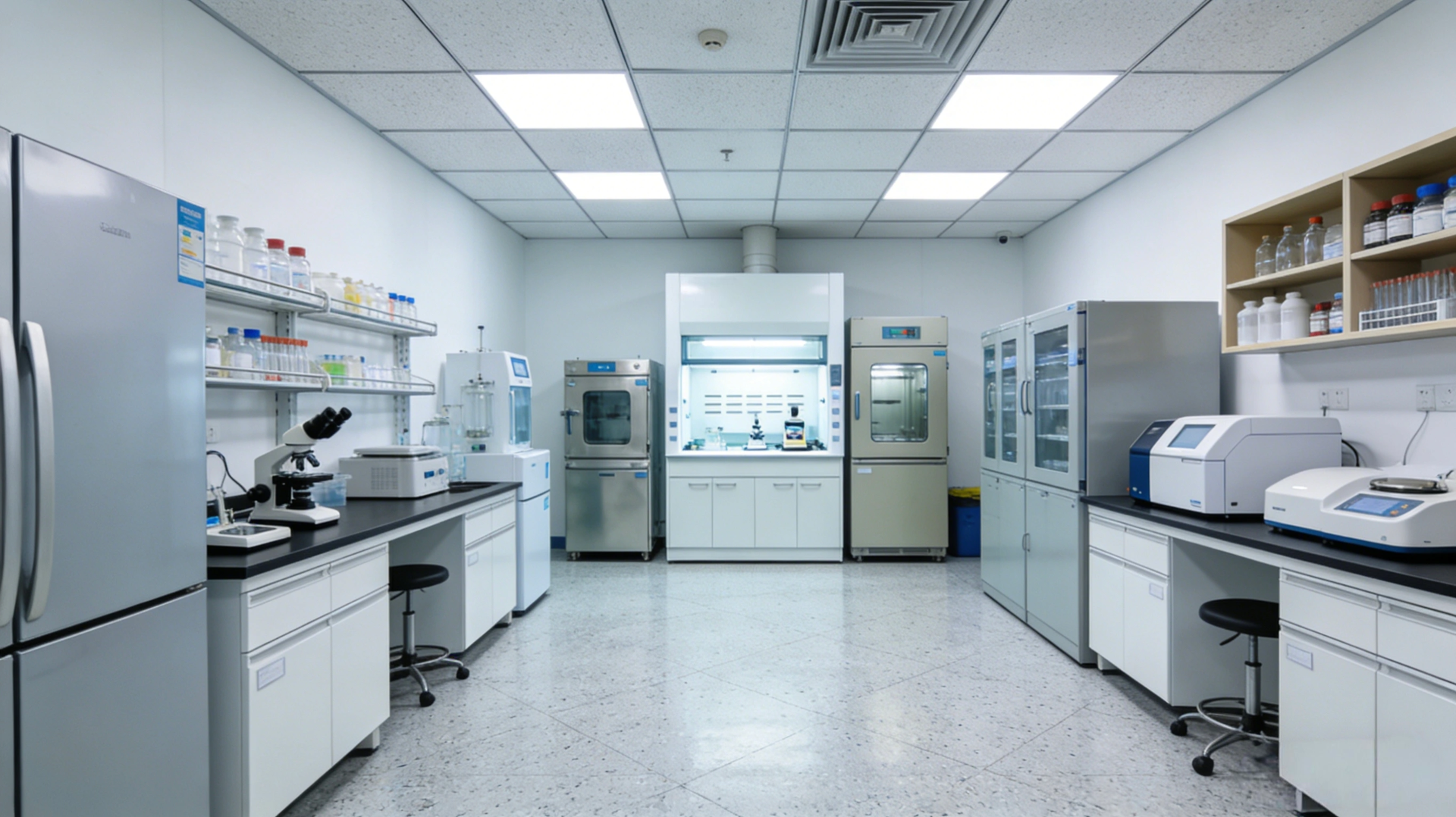

A well-planned microbiology laboratory design is the foundation of accurate, repeatable test results and safe daily operations. Microbiology laboratories typically include a preparation room, microbial culture room, instrument disinfection and cleaning room, balance room, pure water room, detection room, strain room, and storage room. The composition and scale of a microbiology lab layout vary considerably depending on the field of work (food, pharmaceutical, medical, etc.) and its purpose (teaching, production, research, or monitoring). Whether you are planning a new clean laboratory setup or upgrading an existing facility, understanding the core layout principles and essential microbiology lab equipment is the first step toward a compliant, efficient workspace.
1. Layout Principles for a Microbiology Laboratory
The microbiology laboratory should be established as an independent, self-contained area, separated from other laboratories, with access control at the entrance - non-related personnel should not be permitted to enter. Rooms should be arranged logically according to workflow, making daily operations convenient without rooms interfering with one another. A centralized locker room is typically provided at the entrance, and depending on culture conditions and sample types, the culture room can be divided into multiple sub-rooms (for example, a mold culture room, bacteria culture room, solid culture room, and liquid culture room).
Clean laboratory zone: This is a self-contained area, typically arranged at a corner of the facility, using sealed doors to restrict access. Rooms with strict cleanliness requirements should be placed where personnel traffic is minimal, with auxiliary rooms set up outside the clean zone. Based on standard microbiological testing procedures, the detection chamber should be adjacent to the scrubbing/sterilization chamber and the culturing chamber, which helps separate personnel flow from material flow (logistics) - an important consideration for contamination control.
To manage personnel access, only one sealed door should lead into the main clean area. Operators enter through a logistics corridor into the preparation room, then pass through a buffer zone before reaching the operating area; an air shower and buffer typically lead into the local Class 100 (ISO 5) laboratory. Material transfer is handled through pass-through windows rather than personnel movement, further reducing contamination risk.
For ventilation, exhaust outlets should be fitted with high-efficiency particulate air (HEPA) filters, and air supply outlets should include a high-efficiency filtration static pressure box. Air supply is typically delivered from upper and lower vents, while exhaust is arranged unilaterally without obstruction. An automatic pressure relief valve maintains the room at positive pressure, preserving the clean state required for reliable microbiological testing - a detail that is often overlooked in early-stage lab planning but is critical for long-term compliance.
2. Laboratory Design and Decoration Standards
The laboratory must provide enough space for safe operation, cleaning, and maintenance.
Walls, ceilings, and floors should be smooth, easy to clean, leak-proof, and resistant to chemicals and disinfectants. Floors should be non-slip.
Test benches should be waterproof and resistant to disinfectants, acids, alkalis, organic solvents, and moderate heat.
Lighting should support all laboratory activities while avoiding unnecessary reflection and flicker.
Laboratory furniture and equipment should be sturdy and durable, with adequate clearance between benches, cabinets, and other fixtures - both around and underneath - to allow proper cleaning.
Sufficient storage space should be available for frequently used items, with a separate long-term storage room located outside the main working area.
Adequate space and dedicated facilities should be provided for the safe handling and storage of solvents, compressed gas, and liquefied gas.
Laboratory doors should include a visible viewing window, meet an appropriate fire rating, and ideally close automatically.
Safety systems should include fire protection, emergency power supply, and emergency shower/eyewash stations.
A reliable and adequate power supply, along with emergency lighting, is essential to ensure personnel can safely exit the laboratory during power outages or emergencies.
Equipment should be designed, constructed, and installed for ease of operation, maintenance, cleaning, decontamination, and quality inspection. Glass and other fragile materials should be avoided wherever possible.
From a procurement standpoint, it's worth budgeting for chemical-resistant countertop materials (such as epoxy resin) up front - replacing substandard bench surfaces later is far more costly than specifying the right material during initial construction.
3. Essential Microbiology Laboratory Equipment
Sterile room and clean bench: The core components of the laboratory, primarily responsible for protecting samples and ensuring accurate experimental results. The sterile room maintains a relatively sterile environment through air purification and space sterilization, typically equipped with pass-through windows, UV lighting, and - in strict setups - a plenum system. Clean benches are simple to operate and come in two main types based on airflow direction: horizontal flow and vertical flow. Vertical flow benches are generally preferred for handling pathogenic samples, as they offer better operator protection.
Incubators: Electric constant-temperature incubators, water-type constant-temperature incubators, biochemical incubators, constant temperature and humidity chambers, anaerobic incubators, and light incubators.
Drying ovens: Electric drying ovens and vacuum drying ovens.
Sterilizers: High-pressure steam sterilizers (autoclaves) and dry heat sterilizers.
Balances: ±0.1mg analytical balances and ±10mg electronic balances.
Microscopes: Biological microscopes, stereo microscopes, fluorescence microscopes, and inverted microscopes.
Spectrophotometers: Visible and UV spectrophotometers for quantitative analysis.
Acidity meters (pH meters): Used for measuring solution pH values.
Conductivity meters: Primarily used for water quality testing.
Refrigeration units: Low-temperature refrigerators, ultra-low-temperature refrigerators, standard refrigerators, and vertical refrigerators.
Ice makers.
Electric steamers and ultra-pure water systems.
Constant-temperature water baths, mixers, ultrasonic cleaners, and electric heating plates.
Nitrogen generation equipment.
Centrifuges: Low-speed centrifuges and benchtop high-speed centrifuges.
Microscopic image analysis systems.
Bacterial identification systems.
How to Choose the Right Microbiology Lab Equipment
When selecting equipment for a new or upgraded facility, procurement teams should consider a few practical factors beyond price:
Application field: Food safety testing, pharmaceutical QC, clinical diagnostics, and environmental monitoring each demand different equipment specifications and validation requirements.
Throughput and scale: Teaching and small QC labs can often work with benchtop units, while production and monitoring labs may need higher-capacity or automated systems (e.g., automated bacterial identification systems).
Compliance requirements: Confirm that autoclaves, incubators, and biosafety cabinets meet relevant certifications (CE, ISO, GMP) applicable to your industry and region.
After-sales support: For critical equipment like autoclaves and clean benches, factory calibration support and spare parts availability are just as important as the initial purchase price.
This type of setup is well suited to food and beverage manufacturers, pharmaceutical and biotech companies, third-party testing laboratories, hospitals, and educational institutions building or expanding a microbiology testing capability.
Frequently Asked Questions
What rooms should a microbiology laboratory include?
-
A typical microbiology laboratory includes a preparation room, microbial culture room, instrument disinfection and cleaning room, balance room, pure water room, detection room, strain room, and storage room, though the exact composition varies by field and purpose.
What is the difference between horizontal and vertical flow clean benches?
-
Horizontal flow clean benches direct filtered air toward the operator, while vertical flow benches direct air downward, offering better protection when handling pathogenic or hazardous samples.
Why does a microbiology clean room need positive pressure?
-
Positive pressure prevents unfiltered outside air from entering the clean zone, helping maintain the sterile conditions required for accurate microbiological testing and contamination control.
What equipment is essential for a basic microbiology lab?
-
Core equipment includes incubators, autoclaves (sterilizers), a clean bench, analytical balance, microscope, pH meter, centrifuge, and refrigeration units, with additional equipment depending on the application field.
How do I choose the right microbiology lab equipment supplier?
-
Look for suppliers offering equipment that meets relevant certifications (CE, ISO, GMP) for your industry, along with reliable after-sales calibration support and spare parts availability.
